Q1000 + Real-Time qPCR System

1、The new generation of Peltier-based technology,fast ramping rate of up to 7℃/sec.
2、Maintenance free,long life LED illuminator and high sensitivity photoelectric detector.
3、Synchronous two color detection system,reducing errors caused by delay,shortening scan time.
4、Calibration with ROX dye is not required,guarantees extremely uniform fluorescence wells.
5、The software could be upgraded free for life.

Availability:



Inquire

1、The new generation of Peltier-based technology,fast ramping rate of up to 7℃/sec.

2、Maintenance free,long life LED illuminator and high sensitivity photoelectric detector.

3、Synchronous two color detection system,reducing errors caused by delay,shortening scan time.

4、Calibration with ROX dye is not required,guarantees extremely uniform fluorescence wells.

5、The software could be upgraded free for life.

Related Products

Q160C Mini Real-Time qPCR System

Q2000C Real-Time qPCR System

Q2000A Real-Time qPCR System

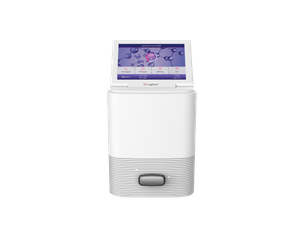

Q2000B Real-Time qPCR System

Q160 Mini Real-Time qPCR System

Q1000 Real-Time qPCR System

Model	Q1000+/Q1000R+(for research only)
PERFORMANCE
Sample Block Capacity	48 wells *0.1ml
Reaction Volume	10-50ul (recommend 20ul)
Tubes Option	white PCR tubes or strips of tubes with optical flat cap
Healing &Cooling Technology	New generation Peltier technology allow 1.000.000 cycles
Control Methods	Operate via PC control or Iimited function on instrument
Language	English
Communication Ports	USE 2.0＆ LAN
Display	7”Color TFT LCD and Touch Screen
Certified	CE-IVD/Non CE-IVD
TEMPERATURE
Block Temp.Range	0℃-105℃
Max.Heating Rate	7℃/sec
Max.Cooling Rate	5℃/sec
Temp.Uniformity	±0.2℃at90℃
Temp.Accuracy	±0.1℃(10 seconds after reach 90℃)
Display Resolution	0.1℃
Heat Lid Temp.Range	30℃-112℃
Gradient Range	30℃-100℃
Temp.Differential Range	1℃-24℃
OPTICAL MODULE
Excitation	Long life LED
Detection	CCDs
Dynamic Range	1—10¹º
Detection Sensitivity	≥1 copy
Calibrated Dyes at Installation	F1：FAM/SYBR Green F2：VIC/HEX/JOE/CY3/TET(★ Reserved) F3：ROX/ TEXAS-RED/TAMRA(★Reserved) F4：CY5/Quasar670
Fluorescence Excitation Range	300-800nm
Fluorescence Detection Range	500-800nm
Date Export Formats	TXT，PDF，WORD，Excel
OTHER FEATURES
AC Power Supply	100V-240V，50-60Hz
Consumption	400W
Net Weight	8.2kg
Dimensions(L×W×H)	320×205×380mm
COMPUTER
Operating Systems	Windows7、Windows10、WindowsXP

Model	Q1000+/Q1000R+(for research only)
PERFORMANCE
Sample Block Capacity	48 wells *0.1ml
Reaction Volume	10-50ul (recommend 20ul)
Tubes Option	white PCR tubes or strips of tubes with optical flat cap
Healing &Cooling Technology	New generation Peltier technology allow 1.000.000 cycles
Control Methods	Operate via PC control or Iimited function on instrument
Language	English
Communication Ports	USE 2.0＆ LAN
Display	7”Color TFT LCD and Touch Screen
Certified	CE-IVD/Non CE-IVD
TEMPERATURE
Block Temp.Range	0℃-105℃
Max.Heating Rate	7℃/sec
Max.Cooling Rate	5℃/sec
Temp.Uniformity	±0.2℃at90℃
Temp.Accuracy	±0.1℃(10 seconds after reach 90℃)
Display Resolution	0.1℃
Heat Lid Temp.Range	30℃-112℃
Gradient Range	30℃-100℃
Temp.Differential Range	1℃-24℃
OPTICAL MODULE
Excitation	Long life LED
Detection	CCDs
Dynamic Range	1—10¹º
Detection Sensitivity	≥1 copy
Calibrated Dyes at Installation	F1：FAM/SYBR Green F2：VIC/HEX/JOE/CY3/TET(★ Reserved) F3：ROX/ TEXAS-RED/TAMRA(★Reserved) F4：CY5/Quasar670
Fluorescence Excitation Range	300-800nm
Fluorescence Detection Range	500-800nm
Date Export Formats	TXT，PDF，WORD，Excel
OTHER FEATURES
AC Power Supply	100V-240V，50-60Hz
Consumption	400W
Net Weight	8.2kg
Dimensions(L×W×H)	320×205×380mm
COMPUTER
Operating Systems	Windows7、Windows10、WindowsXP
