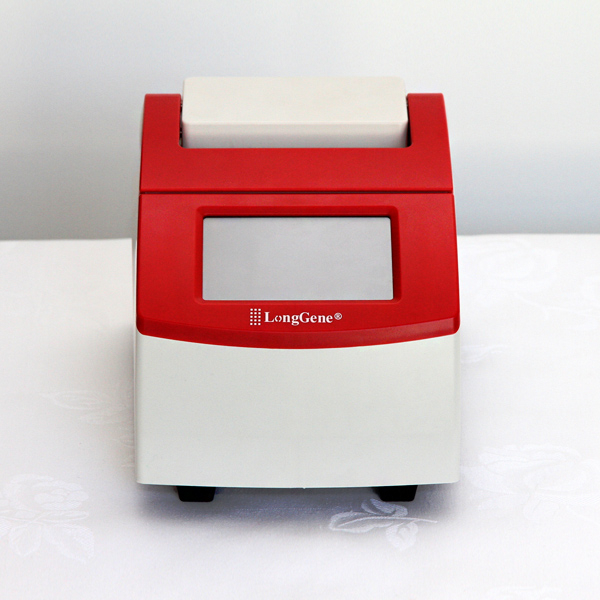

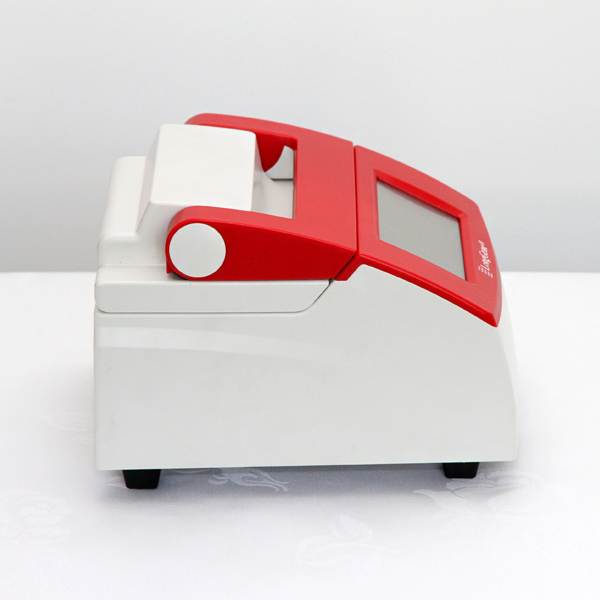

Professional Mini Thermal Cycler

1、Available in 16 and 32 wells sizes.
2、Fast ramping rate,up to 5℃/S.
3、Superior Temp.uniformity, guaranteeing the same PCR results with 96-wells cyclers.
4、Core parts from famous supplier,quality life is guaranteed.
5、 Lightweight &powerful

Model

Mini1610

Mini3220

Sample Block

16 wells*0.2ml

32 wells*0.2ml

Tube Type

Accommodates 0.2 ml tubes or strip of 8 tubes

Heating&Cooling Technology

New generation Peltier technology allow 1.000.000 cycles

Display

4.3"TFT color touch screen

Language

English

Communication Port

1 USB port

Venting System

Bottom air in &back air out, two thermal cyclers can be placed side by side

TEMPERATURE

Block Temp.Range

0.1℃-99.9℃

Max.Heating Rate3℃/S

5℃/S

Max.Cooling Rate

2℃/S

4℃/S

Temp.Uniformity

≤±0.25℃

Temp.Accuracy

≤±0.25℃

Display Resolution

0.1℃

Mode of Temp.Control

simーtube& Block mode

Ramping Rate Adjustable

0.1-3.0℃

Lid Open Method

New"TOP-OPEN" technology lift&open with just one action

SOFTWARE

Max.No.of Programs

≥100 user protocols on board
Time Increment/Decrement1-120 sec, available for Long PCR

Temp.Increment/Decrement

0. 1-9.9℃. available for Touchdown PCR

Auto Pause/ Auto Restart

Yes

Hold at 4℃

A below ambient temerature incubation allow PCR products storage overnight

Running Report

Provide detailed reports of previously run protocols
OTHER FEATURES

Power

Global switch power supply: 85V-265V, 50-60Hz

Power Consmption

Max.160W

Approvals

ISO9001:2000,CE

Dimension(LXWXH)

232x182x157mm

Net Weight

2.9KG


1、Available in 16 and 32 wells sizes.

2、Fast ramping rate,up to 5℃/S.

3、Superior Temp.uniformity, guaranteeing the same PCR results with 96-wells cyclers.

4、Core parts from famous supplier, quality life is guaranteed.

5、 Lightweight &powerful.
