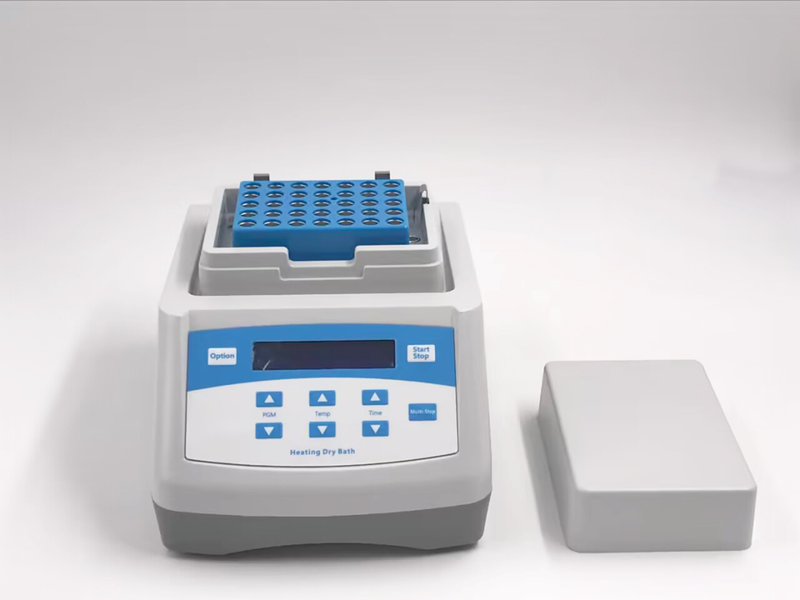

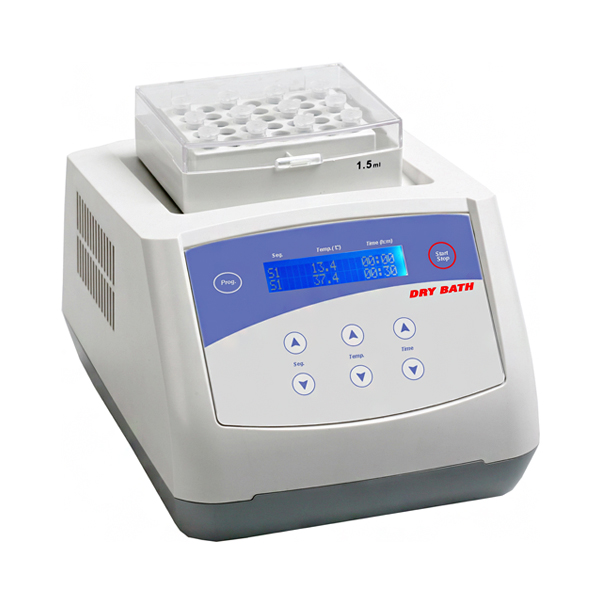

Dry Bath Incubator

ByGeneTM series Dry Bath Incubator is a microcomputer controlled Heating ＆Cooling Plate,
which is designed to accommodate an assortment of interchangeable Block. There are three models of Heating, Cooling ＆Mixing, ByGeneTM series Dry Bath Incubator is a microcomputer controlled Heating ＆Cooling Plate, which is designed to accommodate an assortment of interchangeable Block. There are three models of Heating, Cooling ＆Mixing, whose wide applications include sample storage and reaction of various kinds of enzyme, heat treament of nucleic acid ＆protein, PCR reaction and pre-denaturation ,pre-denaturation before electrophoresis,serum solidification,etc.Model BG25& BG100 adopts advanced Peltier based technology, Model BG 100& BG200 shaking Dry Bath Incubator makes heating& cooling with mixing perfectly with brushless DC motor.
Availability:
Inquire

Model

BG25

BG100

BG200

BG32

Technology

Peltier-based

Peltier-based

Peltier-based

Peltier-based

Temp.Conteol Range

-10℃－100℃

0℃－100℃

Room Temp.+5℃－100℃

Room Temp.+5℃－100℃

Heating Time

≤15min

<15min

<15min

≤15min

Temp.Control

Accuracy(＠40℃－100℃)

±0.3℃

±0.3℃

±0.3℃

±0.3℃

Temp.Stability(＠100℃)

±0.3℃

±0.3℃

±0.3℃

±0.3℃

Block Temp.Uniformity

±0.3℃

±0.3℃

±0.3℃

±0.3℃

Display Resolution

0.1℃

0.1℃

0.1℃

0.1℃

Temp.Bias

Calibration Function

yes

yes

yes

yes

Timing Rang

0 min －99h59min

0 min －99h59min

0 min －99h59min

0 min －99h59min

Max.Power

150W

150W

150W

150W

Mixing Speed

/

300rpm-1500rpm

300rpm-2000rpm

/

Mixing Orbit

/

2mm( Horizontal)

2mm( Horizontal)

/

Optional Block Model

A.20wells×1.5ml＋15wells×0.5ml

B.96 wells×0.2ml

C.54 wells ×0.5ml

D.24 wells ×5ml Tube

E.35 wellsx2.0ml

F.28wells×Φ12.5mm

G.35wells×1.5ml

H. 6wells×50ml

A.96wells×0.2ml

B.15wellsx0.5ml+20wells x1.5ml

C.54wells ×0.5ml

D.35wels×x1.5ml

E.35wels×x2.0ml

Certificate

CE


ByGeneTM series Dry Bath Incubator is a microcomputer controlled Heating ＆Cooling Plate, which is designed to accommodate an assortment of interchangeable Block. There are three models of Heating, Cooling ＆Mixing, whose wide applications include sample storage and reaction of various kinds of enzyme, heat treament of nucleic acid ＆protein, PCR reaction and pre-denaturation ,pre-denaturation before electrophoresis,serum solidification,etc.Model BG25& BG100 adopts advanced Peltier based technology, Model BG 100& BG200 shaking Dry Bath Incubator makes heating& cooling with mixing perfectly with brushless DC motor.
